Pillar jib crane with cantilever girder boom and 270° electric rotation
Pillar jib crane with cantilever girder boom and 270° electric rotation
When the weight of the load or the thrust forces are difficult for a classic crane with manual rotation, the best solution is to resort to the jib crane with 270° electric rotation. The jib crane with cantilever girder boom, in particular, makes it possible to utilise the available space in height with a consequent increase in the available hook stroke. The cantilever girder is self-supporting, without using tie rods.
The boom is rotated by means of a gear motor/joint system, coupled directly to the rotation pin, and is controlled by an inverter. The gear motor is of the planetary type, driven by a self-braking electric motor with soft start.
The hoist trolley power line consists of self-extinguishing flexible cables installed in sliding cable track systems under the boom.
The push-button strip may be hanging from the hoist, or sliding and independent, as required. Rotation limit switches are installed in case it is necessary to limit the boom tilting range.
Advantages of the pillar jib crane with cantilever girder boom and 270° electric rotation

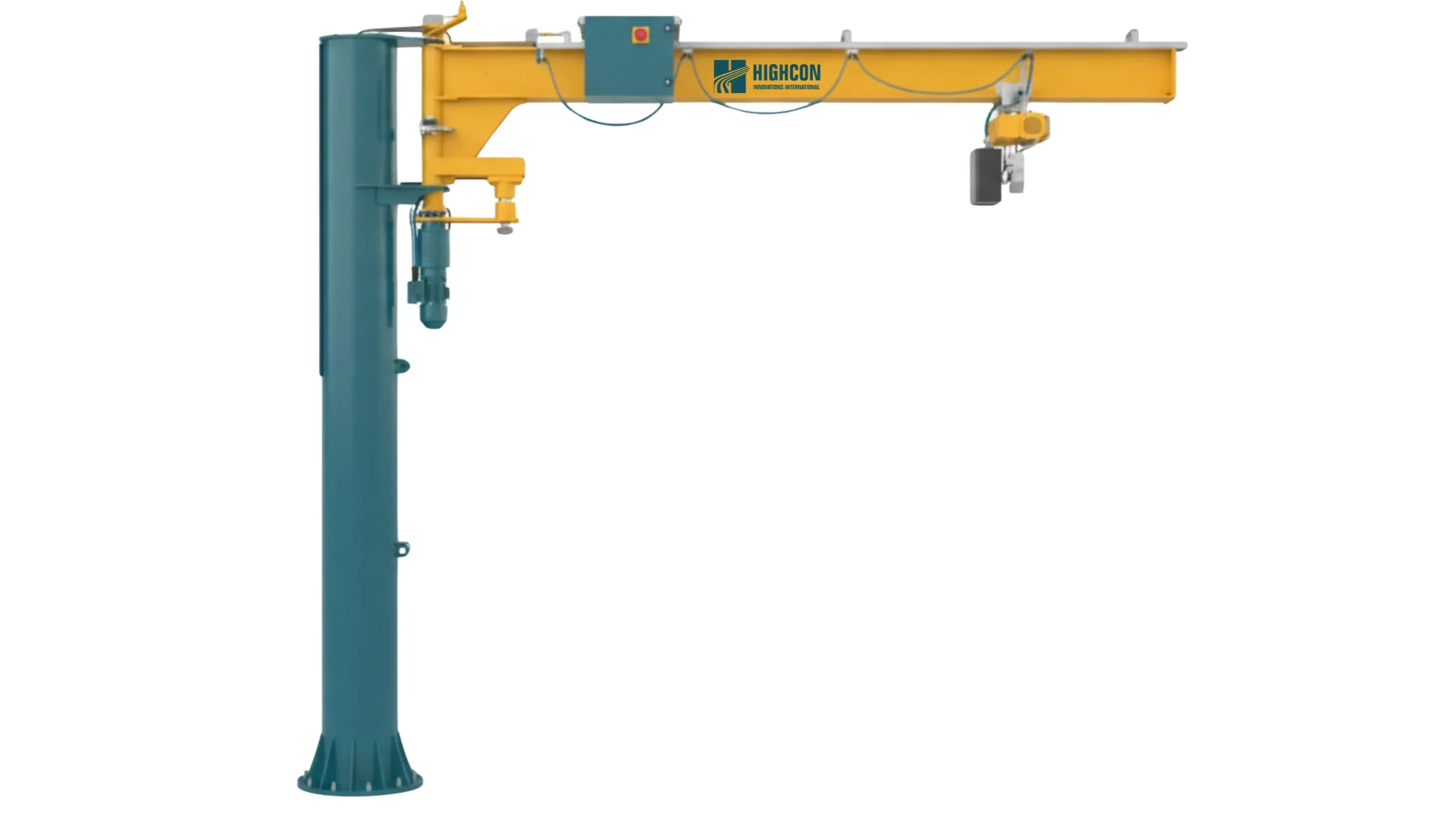

Product and configurations
Standard features
Optional features

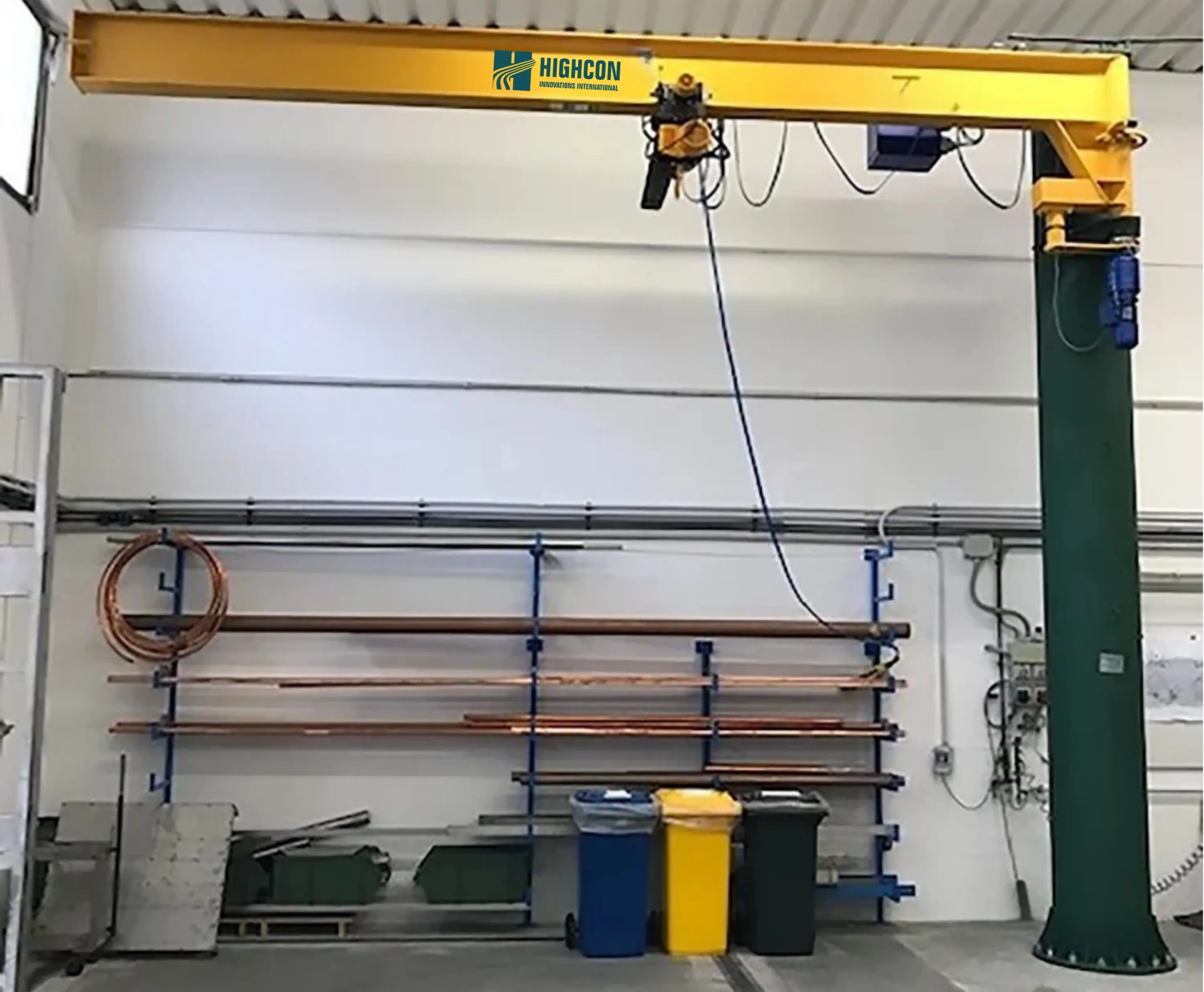

Picture Gallery
