SENSORS
Our aerospace design solutions include piezoresistive transducers, differential pressure transducer, conventional-type transducer, and accelerometer.

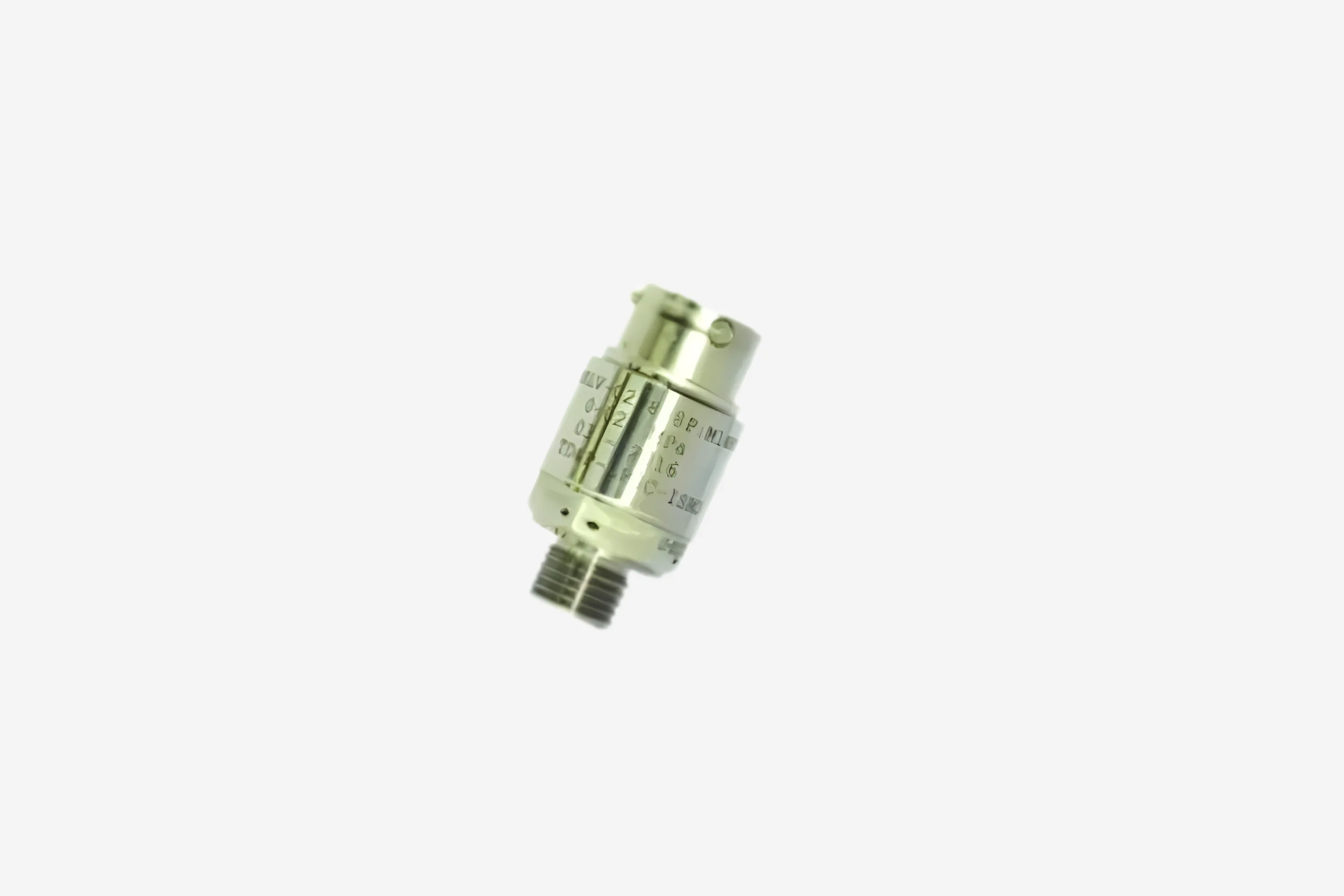

Piezoresistive Transducer
MEMS-based Piezoresistive pressure transducer encompassing built-in temperature compensation and output amplification; CACPL Aerospace MEMS pressure transducers are smaller with higher reliability. A typical MEMS pressure transducer operates in 5VDC and has 2.5VDC output at nominal pressure. CACPL Aerospace produced a wide range of pressure transducers starting from 1 bar to 150 bar.

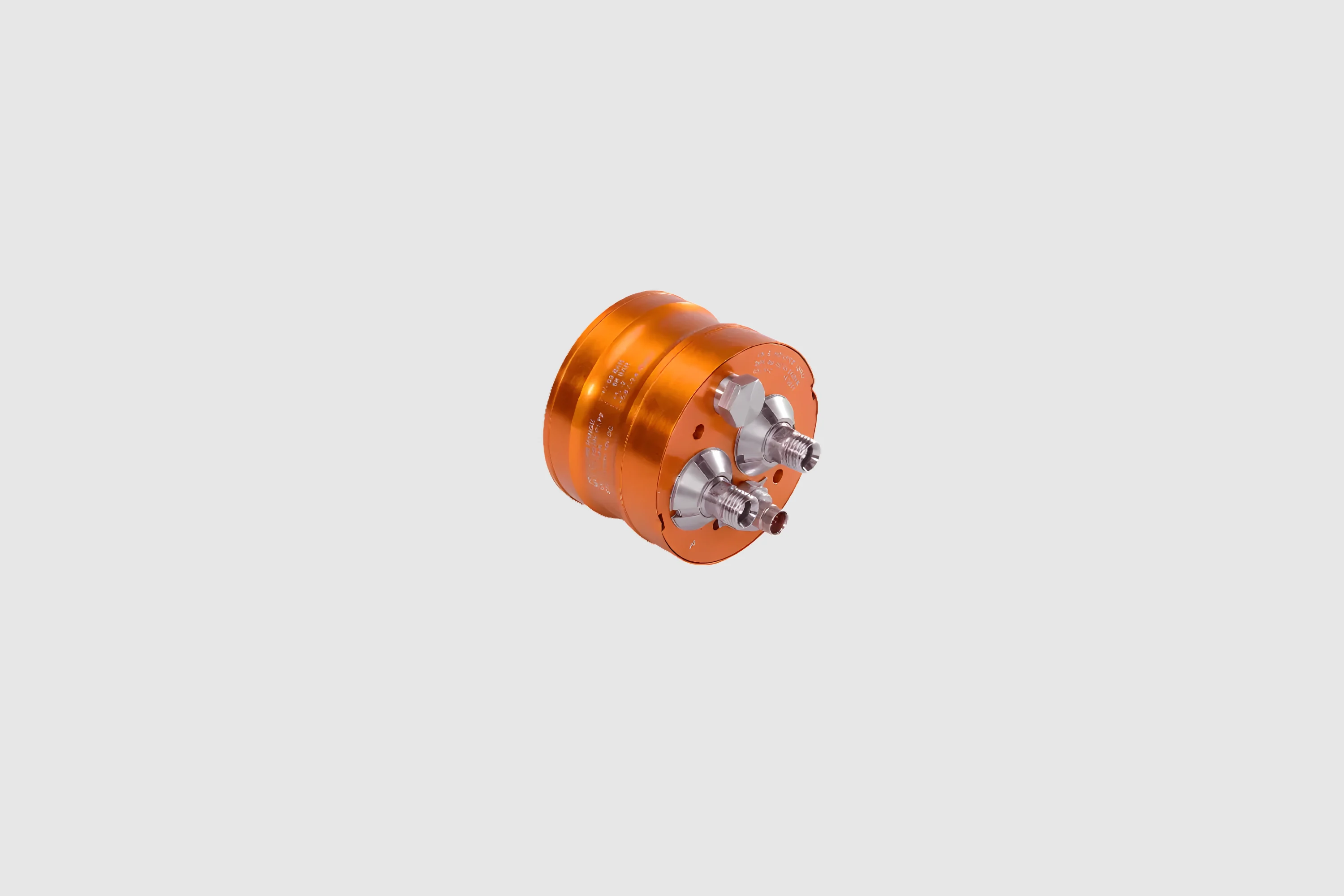

Differential Pressure Transducer
CACPL Aerospace differential pressure transducers are conventional type strain gauge-based transducers. The main application of this pressure transducer is to find the pressure difference between 2 different pressures. It operates at 10VDC and produces an output of 10mVdc at maximum pressure. CACPL has a wide range of pressure transducers starting from +/-3 bar, +/-5bar & +/-15 bars.

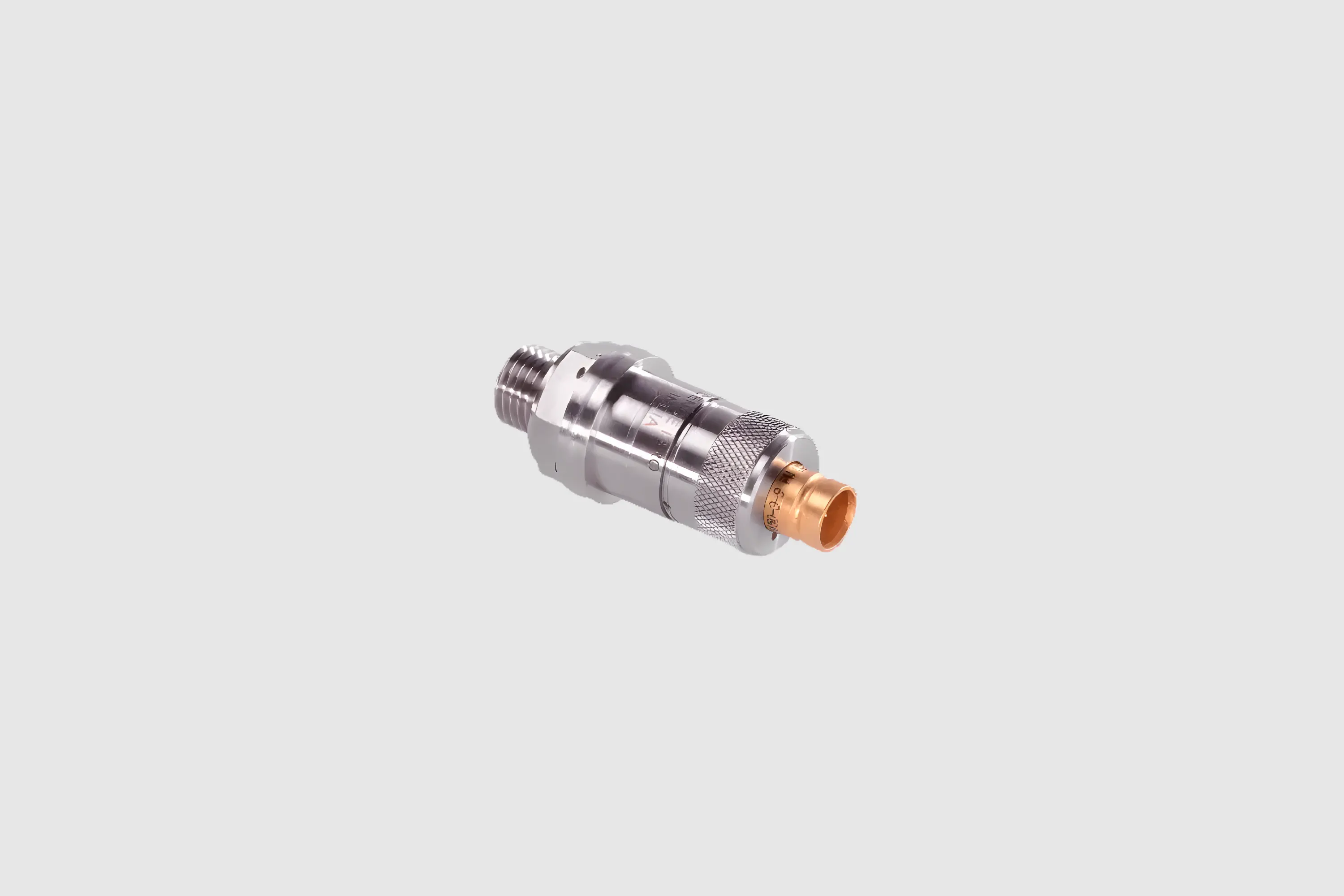

Conventional Type Transducer
It is a conventional strain gauge type high accuracy pressure transducer. It operates at 5VDC and produces 10 mV as output. This type of pressure transducer is specially made for space applications. CACPL Aerospace produced a wide range of pressure transducers starting from 3 bars to 400 bars.

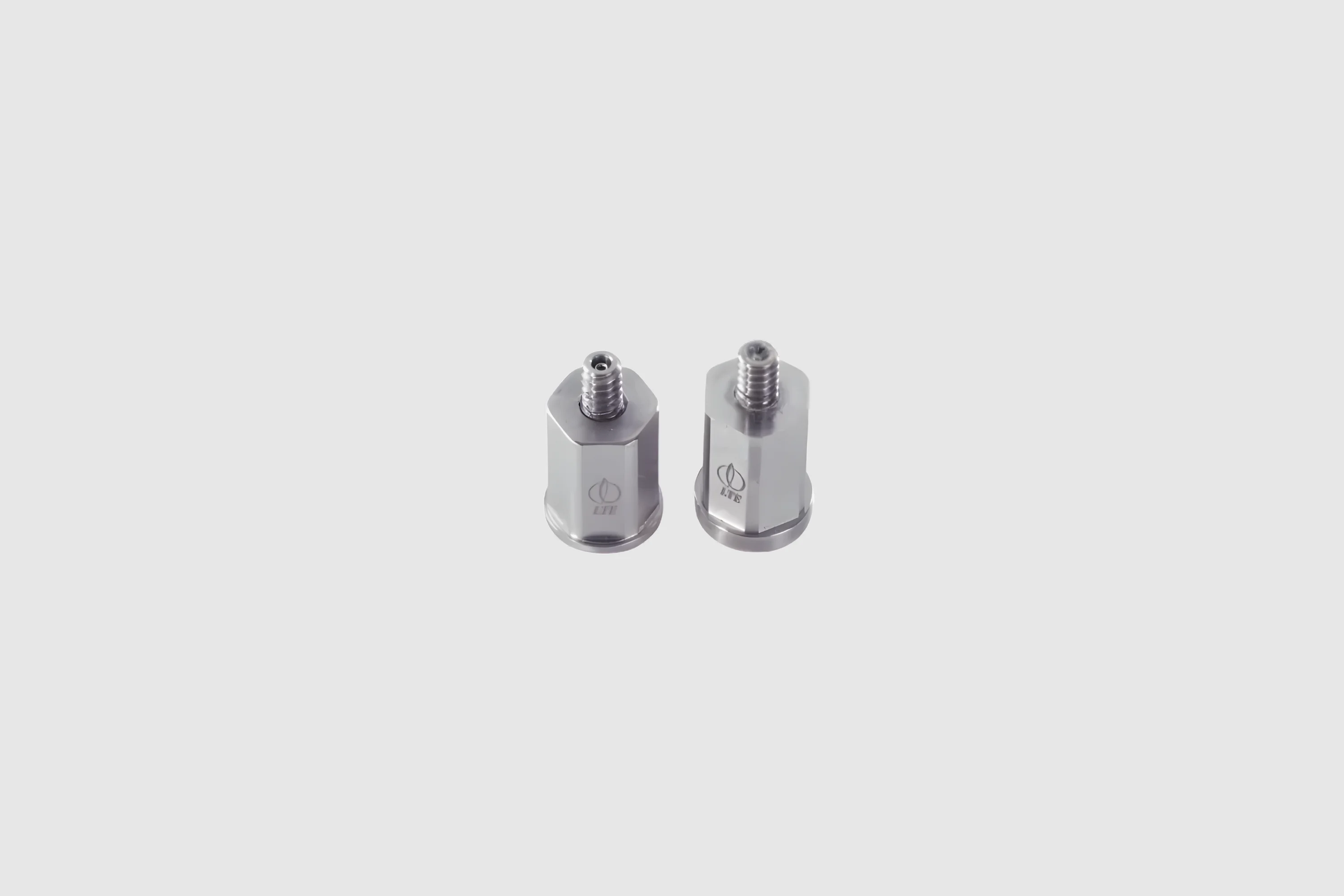

Accelerometer
Piezoelectric accelerometers for vibration measurement on engine for safety of flight
